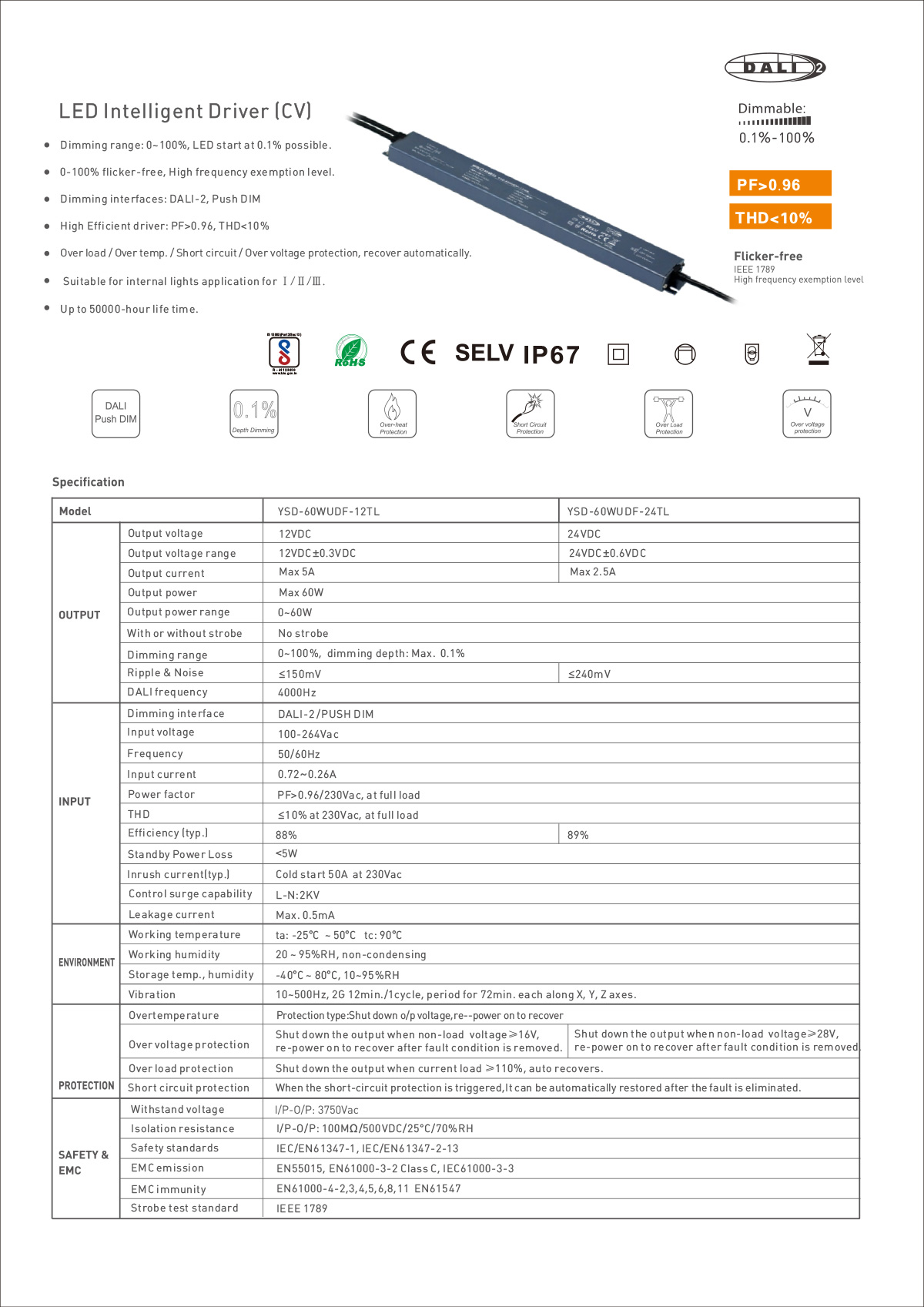

● Model number:YSD-60WUDF-12v 24V
● Input voltage :100-277Vac
● Output voltage :12V, 24V
● Output power range :0~60W
● Power factor :PF>0.96
● Efficiency :90%
● Dimming range :0.1~100%, dimming depth: maximum 1%
● Certificate :CE, ROHS BIS
● Warranty period :5 years
DALI Dimming DT6 provides switching, dimming, grouping, and scene functions.
DALI dimming DT6 supports DALI-2 standard, has good compatibility, and can be compatible with DALI controllers and control systems of mainstream manufacturers.
Through the DALI control device, functions such as switching, dimming, grouping and scene can be realized. These features enable DALI Dimming DT6 to meet a wide range of lighting control needs,

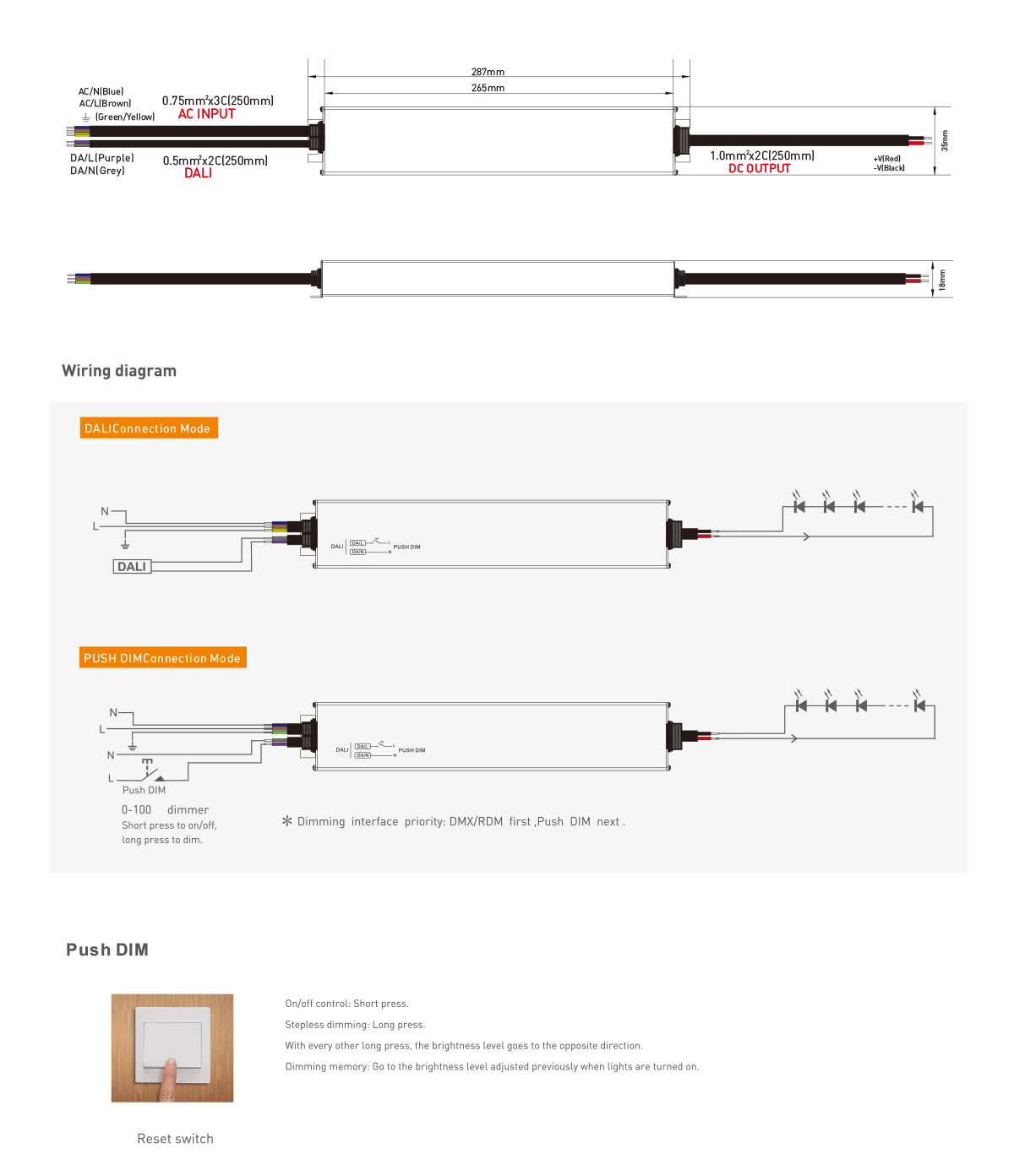

including but not limited to automatically adjusting light brightness, color and tone according to the scene, as well as intelligent lighting management. In addition, the DALI Dimming DT6 also supports Push Dim (key dimming), which can be dimmed by connecting a self-restoring switch,
providing greater operational flexibility. These features make DALI Dimming DT6 ideal for modern lighting control
