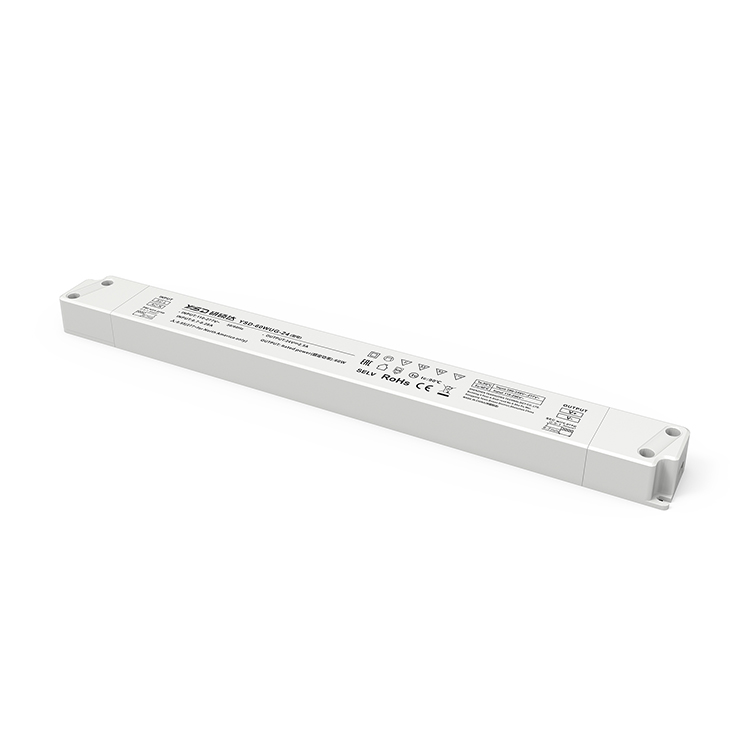

● 60W ac dc power supply
● PF test under AC 220V and full loading
● Input voltage：100-277V
● Output voltage：12V，24V
● Output power range：0~60W
● Power factor：PF>0.96/230Vac,at full load.PF>0.98/115Vac,at full load
● Certificates：CE,CB,BIS ROHS
● Warranty period：5 years
● New products can be quickly connect wire, with high power, high PF, long working time, built in EMC, short circuit protection, over-voltage protection, overload protection,over- temperature protection

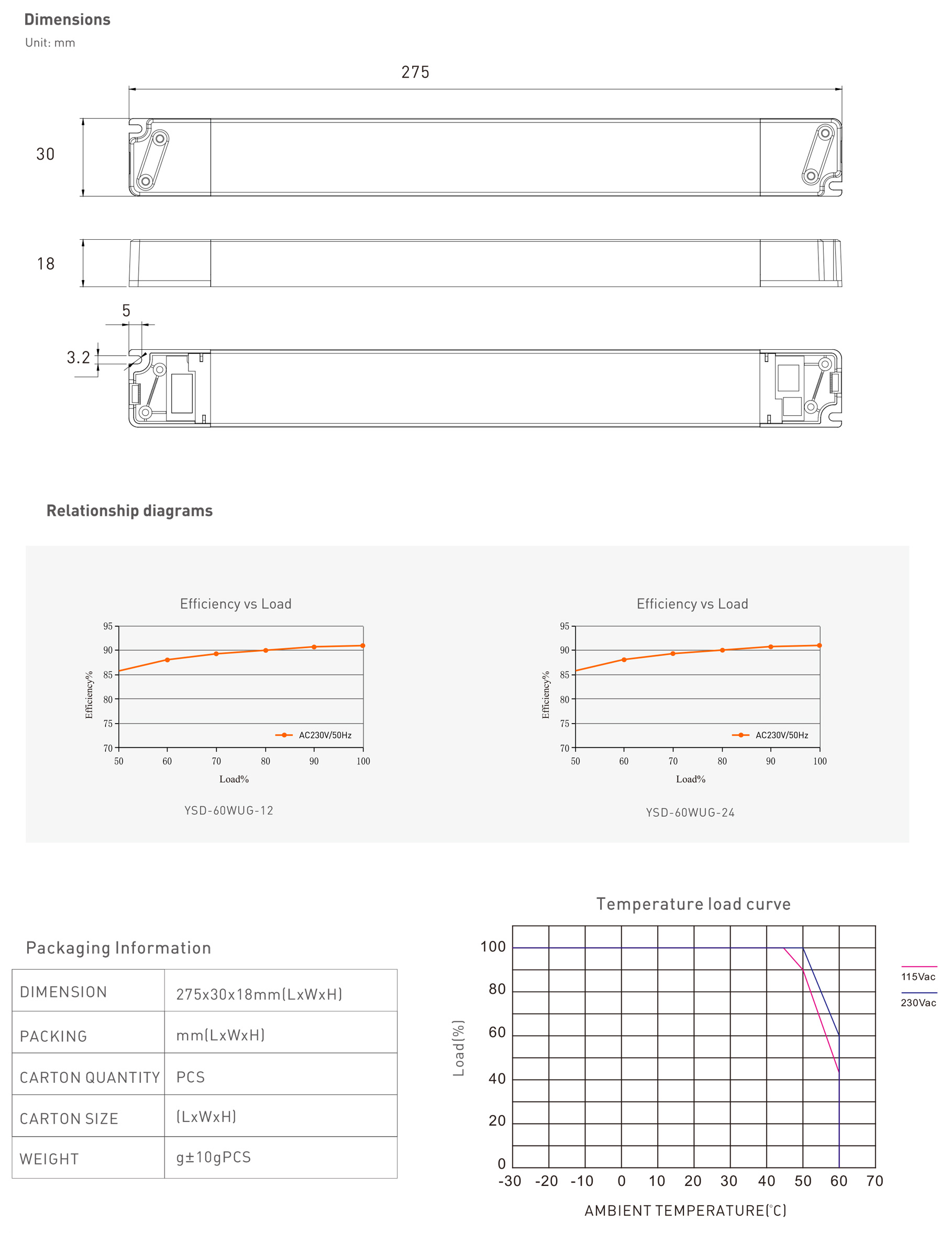

| MODEL | LED power supply | YSD-60WUG-12 | YSD-60WUG-24 | YSD-60WUG-36 | YSD-60WUG-48 | ||||||||||
| OUTPUT | Output voltage | 12V DC | 24V DC | 36V DC | 48V DC | ||||||||||
| Output voltage range | 12VDC±0.3VDC | 24VDC±0.6VDC | 36VDC±0.9VDC | 48VDC±1.2VDC | |||||||||||
| Constant current range | 8.0~12V | 16.0~24V | 24.0~36V | 32.0~48V | |||||||||||
| Output current | Max 5A | Max 2.5A | Max 1.7A | Max1.25A | |||||||||||
| Output power | Max 60W | ||||||||||||||
| Output power range | 0~60W | ||||||||||||||
| Ripple & Noise | ≤300mV | ≤500mV | ≤600mV | ≤800mV | |||||||||||
| Linear Regulation | ±5% | ||||||||||||||
| Load Regulation | ±3% | ||||||||||||||
| Start-up Time (Typ) | 500ms/230VAC 800ms/115VAC | ||||||||||||||
| Rise Time(Typ) | 11ms/230VAC 11ms/115VAC | ||||||||||||||
| Hold Up Time(Typ) | 19ms/230VAC 19ms/115VAC | ||||||||||||||
| INPUT | Input voltage | 110-277Vac | |||||||||||||
| Frequency | 50/60Hz | ||||||||||||||
| Input current | 0.75A/110VAC , 0.33A/240VAC , 0.27A/277V | ||||||||||||||
| Power factor | PF>0.95/230Vac, at full load;PF>0.98/115Vac, at full load | ||||||||||||||
| No-load power consumption | ＜0.5W | ||||||||||||||
| THD | ≤15% at 230Vac,at full load; | ≤10% at 115Vac,at full load | |||||||||||||
| Efficiency (typ.) | 89% | 89.5% | 89.5% | 89.5% | |||||||||||
| Inrush current(typ.) | 50A/230VAC | ||||||||||||||
| Control surge capability | L,N:1KV L,N-PE:2KV | ||||||||||||||
| Leakage current | Max.0.5mA | ||||||||||||||
| ENVIRONMENT | Working temperature | ta: -30°C ~ 50°C tc: 80°C | |||||||||||||
| Working humidity | 20 ~ 95%RH, Non-condensing | ||||||||||||||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||||||||||||||
| Vibration | 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes. | ||||||||||||||
| PROTECTION | Overtemperature | Protection type: Turn off the output voltage, after the temperature drops, re-energize to restore. | |||||||||||||
| Over voltage protection | Output voltage ≥120%-140%, turn off the output,after the abnormality is eliminated, re-energize to recover | ||||||||||||||
| Over load protection | Load current ≥102%~110%, turn off the output, and automatically recover after the fault is eliminated. | ||||||||||||||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||||||||||||||
| SAFETY&EMC | Withstand voltage | I/P-O/P: 3750Vac | |||||||||||||
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||||||||||||||
| Safety standards | IEC/EN61347;UL8750;GB19510 | ||||||||||||||
| EMC emission | EN55015:2013;FCC Part15B;EN61547:2009;EN61000-3-2:2014;EN61000-3-3:2013 | ||||||||||||||
| EMC immunity | EN61000-4-2,3,4,5,6,8,11 EN61547 | ||||||||||||||
| Reliability and Quality Control | Impact aging | 100% of the product is fully loaded and impacted for 4 hours under an environment of at least 40°C±5°C | |||||||||||||
| Component derating | Under the steady-state conditions of rated input and output, the stress of components will not exceed its maximum nominal value | ||||||||||||||
| NOTE | 1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature.
2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment. |
||||||||||||||
