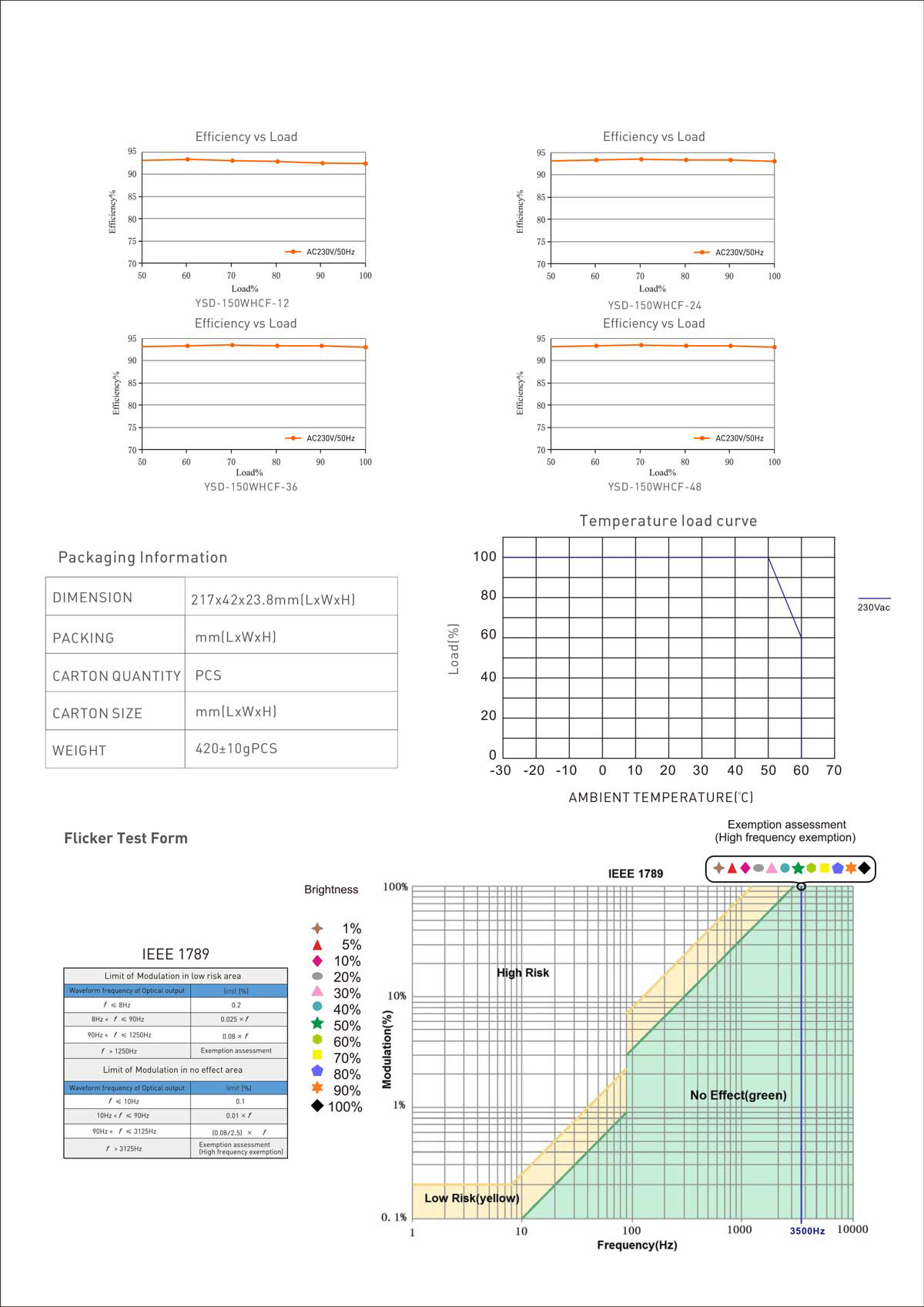

● PF test under AC 230V and full loading
● Input voltage: 176-264Vac
● Output voltage: 12V, 24V, 36V, 48V
● Output power range: 0~150W
● Power factor: PF>0.55
● Efficiency: 92%–93%
● Certificates：CE, CB, TUV, SAA, BIS, ROHS, IEC/EN61347-1, IEC/EN61347-2-13
● Warranty period：5 years

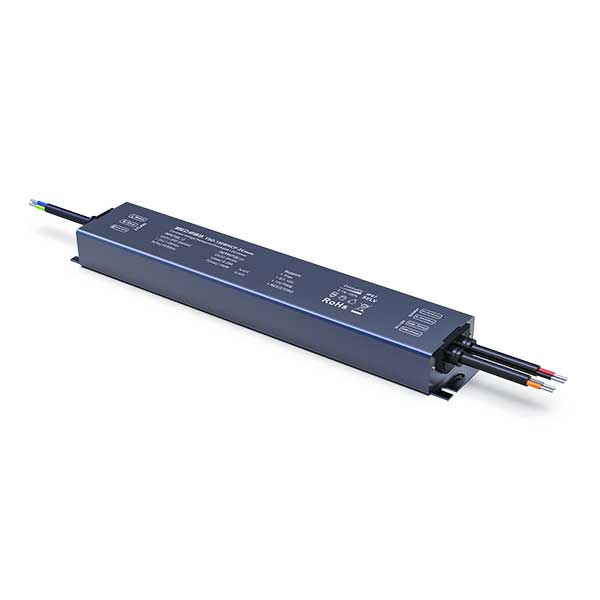

This 150W 230V wide-voltage 5-in-1 multi-signal dimmable constant voltage LED driver is an upgraded high-efficiency power solution for global medium and high-power commercial smart lighting systems. It adopts an ultra-wide universal AC input of 176-264Vac, fully adapting to global power grid standards and suitable for worldwide commercial installation scenarios. It supports flexible optional DC constant voltage outputs of 12V, 24V, 36V and 48V to match diverse high-power LED strips, large light boxes and commercial lighting fixtures. Tested under AC 230V full load condition, the product maintains a stable power factor above 0.55 and achieves excellent ultra-high working efficiency of 92%-93%, effectively reducing long-term energy consumption. Featuring advanced 5-in-1 multi-protocol dimming technology, it realizes ultra-smooth 0.1% ultra-deep dimming and strictly complies with IEEE 1789 flicker-free standards, delivering stable, glare-free and eye-protective lighting. Equipped with automatic protection recovery function and fully certified by CE, CB, TUV, SAA, BIS, RoHS, IEC/EN61347-1 and IEC/EN61347-2-13, this driver is equipped with a 5-year long factory warranty for reliable long-term operation.
