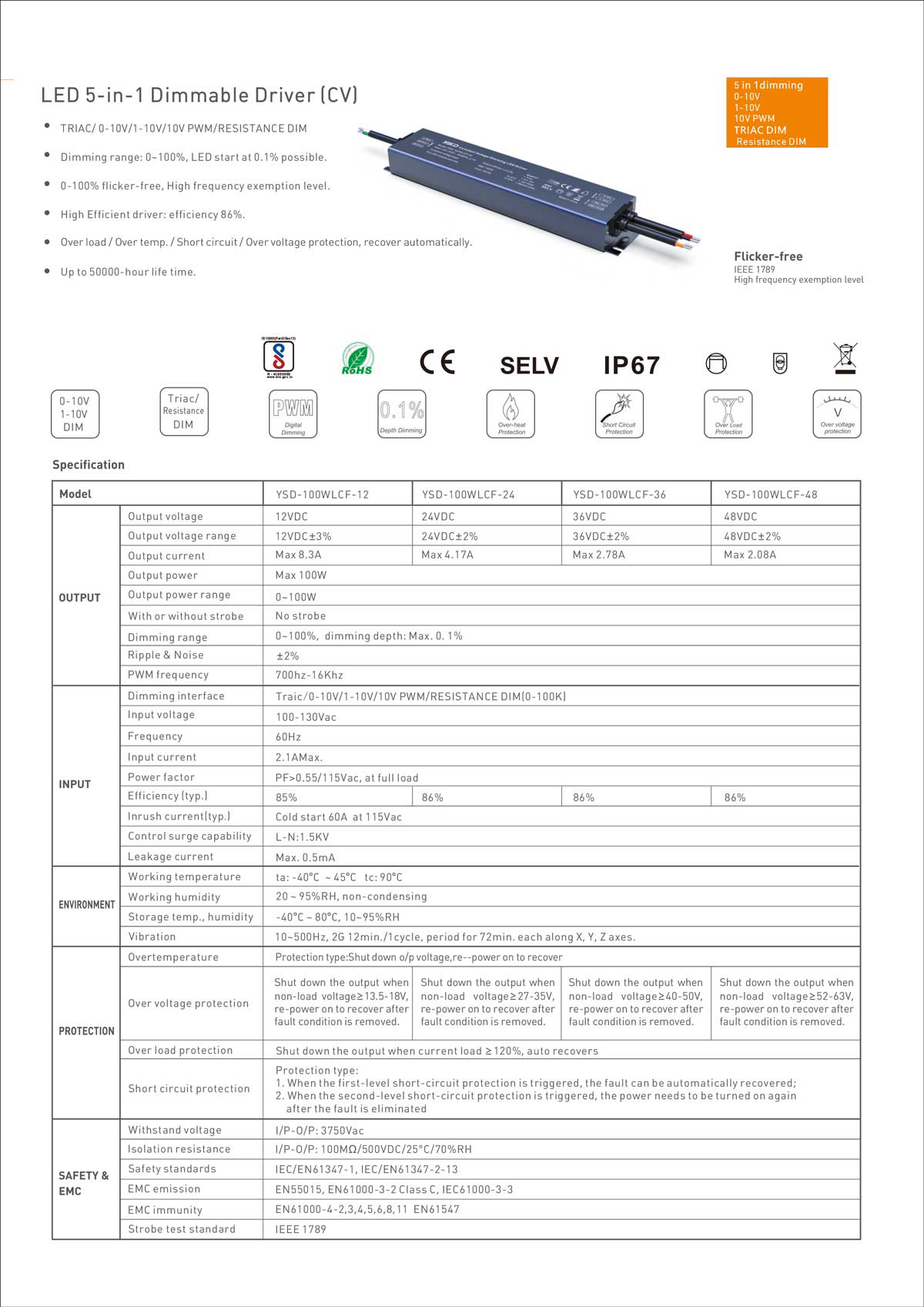

● PF test under AC 115V and full loading
● Input voltage: 100-130Vac
● Output voltage: 12V, 24V, 36V, 48V
● Output power range: 0~100W
● Power factor: PF>0.55
● Efficiency: 85%-86%
● Certificates: CE, CB, TUV, SAA, BIS, ROHS
● Warranty period: (To be confirmed with supplier)
● Features: 5-in-1 dimming, flicker-free (IEEE 1789), 0.1% dimming depth, automatic protection recovery

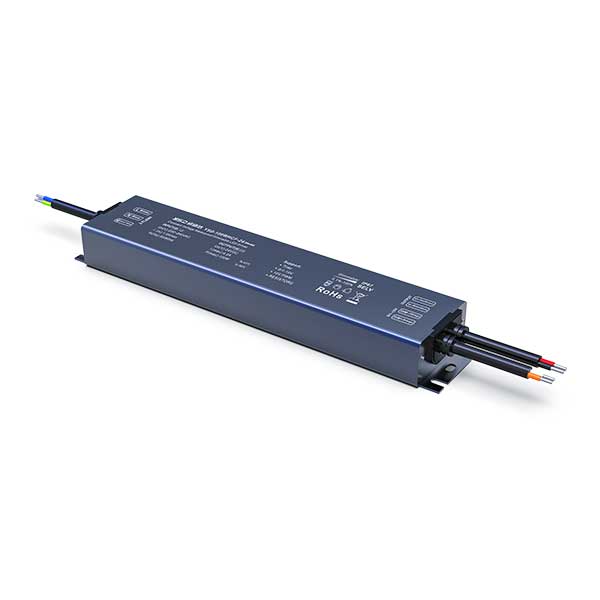

This 100W 5-in-1 multi-signal dimmable constant voltage LED driver is designed for versatile smart dimmable lighting systems. It features a 100-130Vac universal input voltage and supports optional 12V, 24V, 36V and 48V DC constant voltage output. Tested under AC 115V full load condition, it maintains a power factor above 0.55 and stable working efficiency of 85% to 86%. Adopting advanced 5-in-1 dimming technology, it delivers ultra-smooth 0.1% ultra-deep dimming performance and fully complies with IEEE 1789 flicker-free standards for eye-friendly lighting. Built-in automatic recovery protection circuits effectively prevent damage from overload, overvoltage and overheating. Fully certified by CE, CB, TUV, SAA, BIS and RoHS, this driver is widely applicable for LED strips, light boxes and various medium and large commercial dimmable lighting projects.
