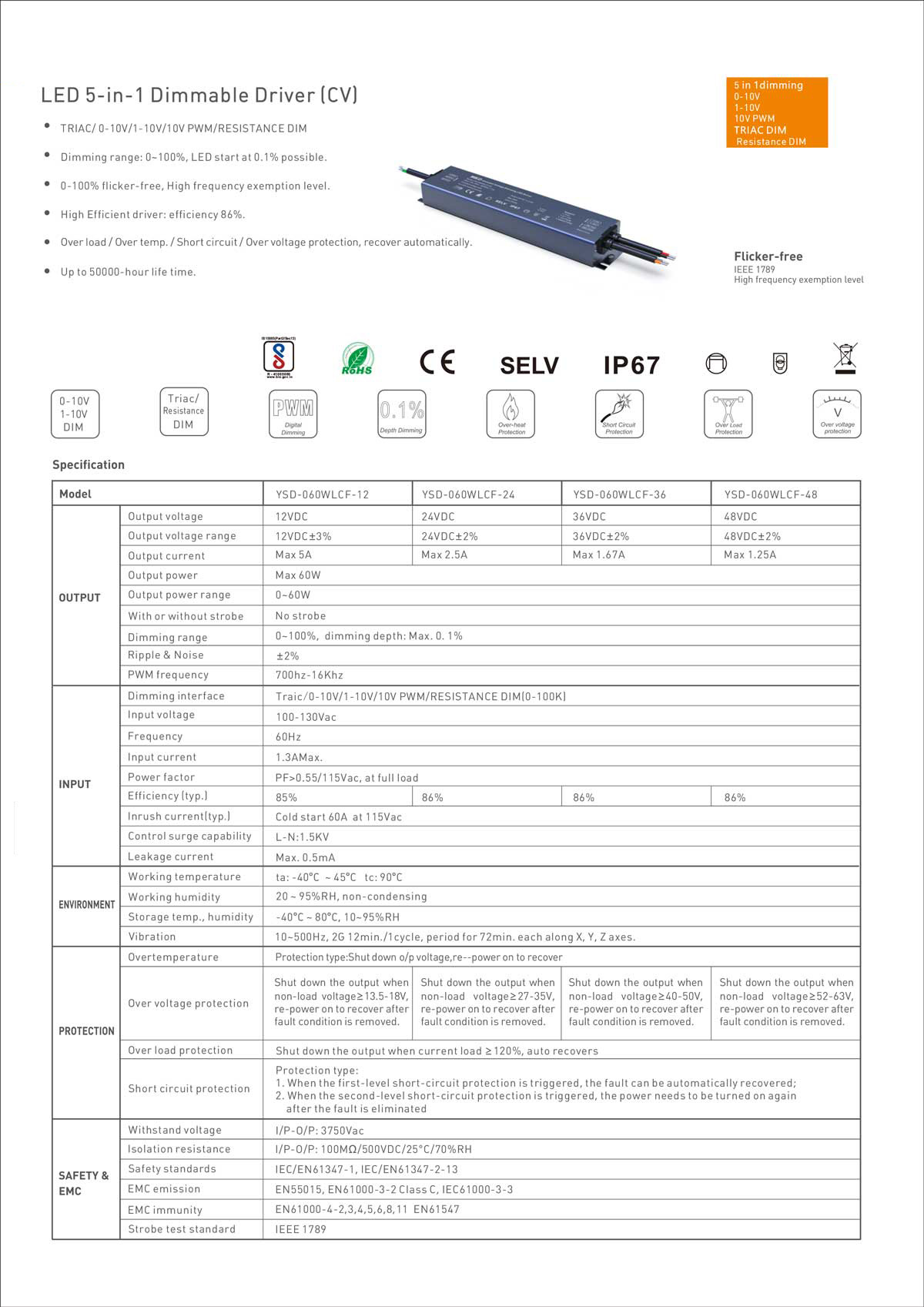

● PF test under AC 115V and full loading
● Input voltage: 100-130Vac
● Output voltage: 12V, 24V, 36V, 48V
● Output power range: 0~60W
● Power factor: PF>0.55
● Efficiency: 85%-86%
● Certificates: CE, CB, TUV, SAA, BIS, ROHS
● Warranty period: (To be confirmed with supplier)
● Features: 5-in-1 dimming, flicker-free (IEEE 1789), 0.1% dimming depth, automatic protection recovery

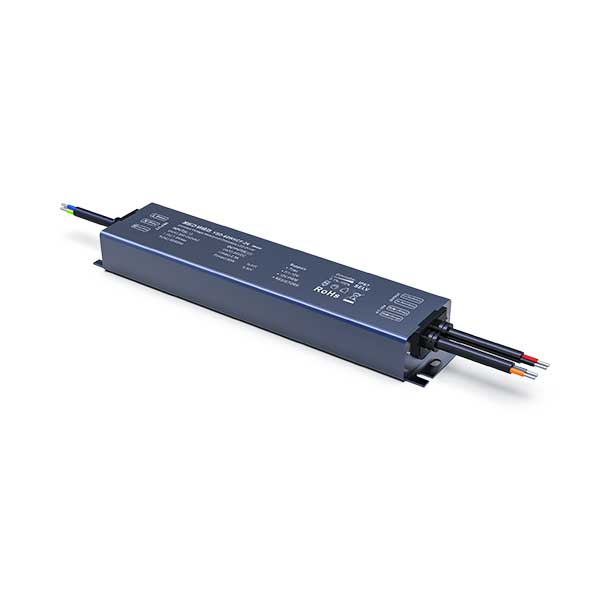

This 60W 5-in-1 dimmable constant voltage LED driver adopts 100-130Vac input voltage with optional 12V, 24V, 36V and 48V DC output. Under AC 115V full load test condition, it features PF>0.55 and 85%-86% conversion efficiency. Supporting 5-in-1 multi-protocol dimming, it achieves ultra-smooth 0.1% deep dimming and flicker-free performance conforming to IEEE 1789 standard. Equipped with automatic recovery protection, this driver is certified with CE, CB, TUV, SAA, BIS and RoHS, widely applied to LED strips, light boxes and medium-power dimmable commercial lighting systems.
