● PF test under AC 230V and full loading
● Input voltage: 176-264Vac
● Output voltage: 12V, 24V, 36V, 48V
● Output power range: 0~200W
● Power factor: PF>0.55
● Efficiency: 92%–93%
● Certificates：CE, CB, TUV, SAA, BIS, ROHS, IEC/EN61347-1, IEC/EN61347-2-13
● Warranty period：5 years

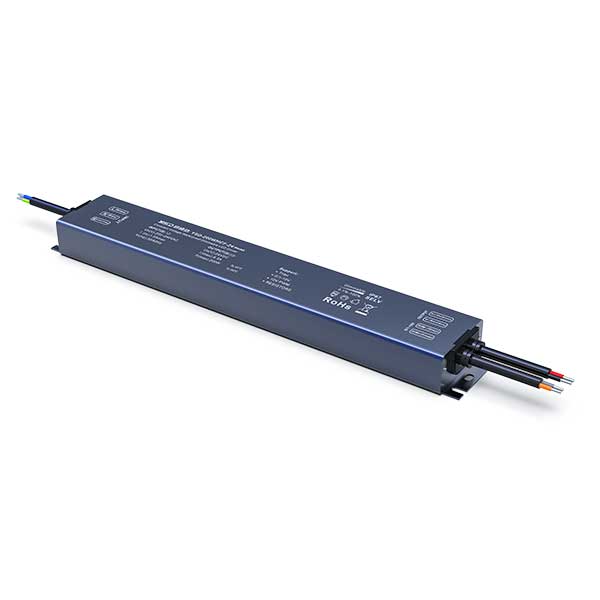

This 200W 230V wide-voltage 5-in-1 multi-signal dimmable constant voltage LED driver is a premium high-power energy-saving solution for global large-scale commercial smart lighting systems. It features an ultra-wide universal AC input range of 176-264Vac, perfectly adapting to diverse grid voltage standards across the world for global universal installation. It provides flexible optional DC constant voltage outputs of 12V, 24V, 36V and 48V to fit various high-power LED strips, oversized light boxes, supermarket and mall commercial lighting equipment. Tested under AC 230V full load condition, the driver maintains a stable power factor above 0.55 and delivers excellent ultra-high working efficiency of 92%-93%, greatly reducing long-term operational energy consumption. Adopting advanced 5-in-1 multi-protocol dimming technology, it achieves ultra-smooth 0.1% ultra-deep dimming performance and fully complies with IEEE 1789 flicker-free standards, offering stable, glare-free and eye-friendly lighting effects. Built with automatic protection recovery function and fully certified by CE, CB, TUV, SAA, BIS, RoHS, IEC/EN61347-1 and IEC/EN61347-2-13, this high-power driver is backed by a 5-year official factory warranty to ensure long-term stable and safe operation of commercial lighting systems.
