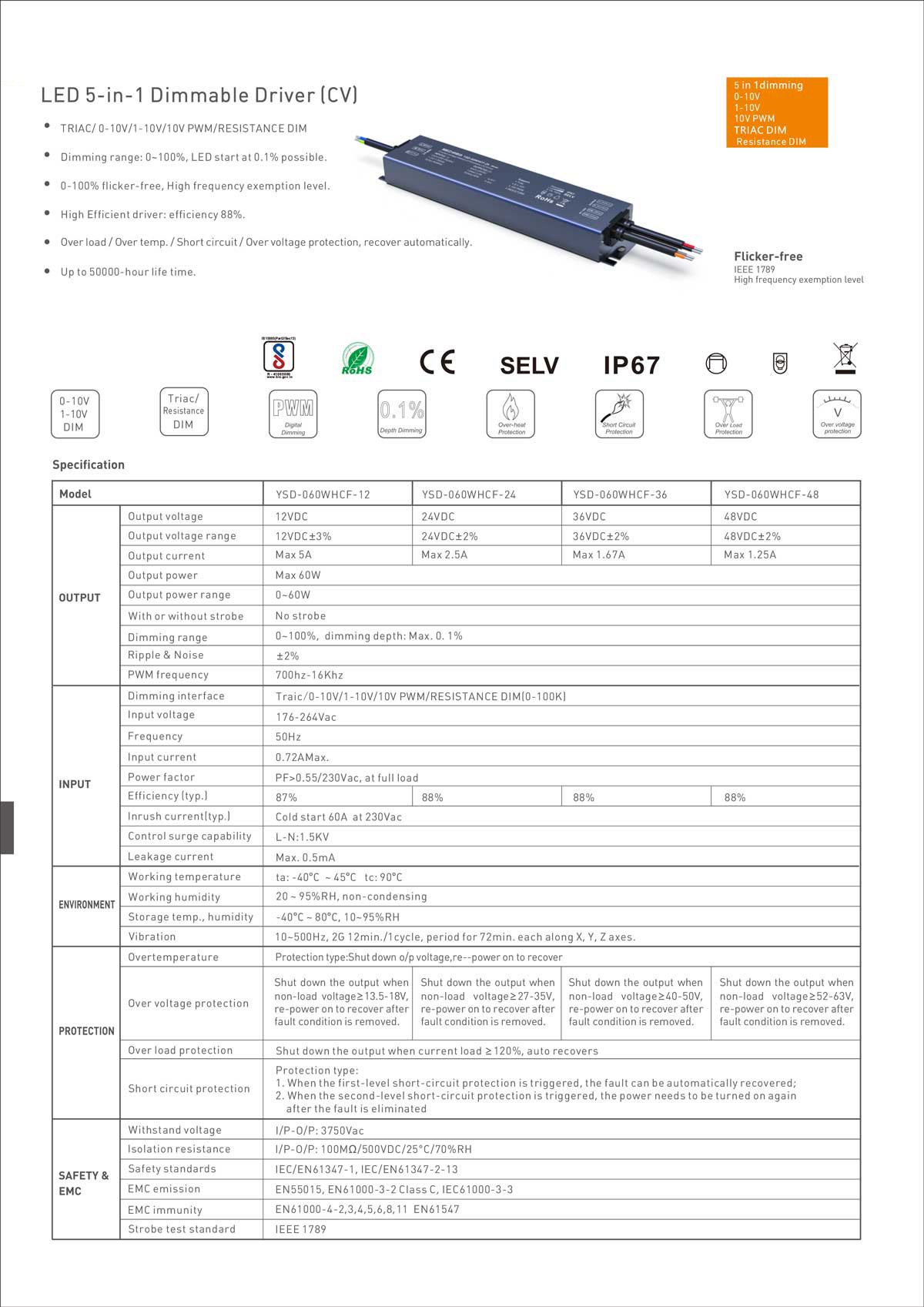

● PF test under AC 230V and full loading
● Input voltage: 176-264Vac
● Output voltage: 12V, 24V, 36V, 48V
● Output power range: 0~60W
● Power factor: PF>0.55
● Efficiency: 87%–88%
● Certificates：CE, CB, TUV, SAA, BIS, ROHS, IEC/EN61347-1, IEC/EN61347-2-13
● Warranty period：5 years

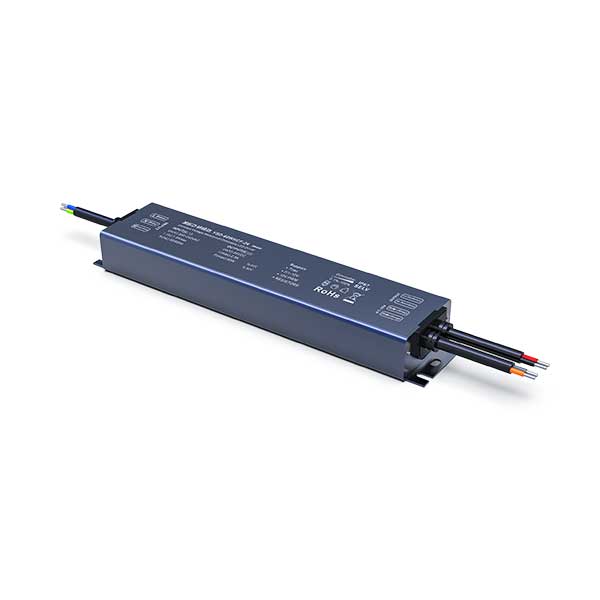

This 60W 230V wide-voltage 5-in-1 multi-signal dimmable constant voltage LED driver is a universal and high-reliable power solution for global commercial lighting projects. It supports an ultra-wide AC input range of 176-264Vac, adapting perfectly to diverse regional grid voltage standards worldwide. It provides flexible optional DC constant voltage outputs of 12V, 24V, 36V and 48V to match various medium-small LED lighting equipment. Tested under AC 230V full load condition, the driver maintains a stable power factor above 0.55 and achieves reliable working efficiency of 87%-88%. Adopting advanced 5-in-1 multi-protocol dimming technology, it delivers ultra-smooth 0.1% ultra-deep dimming performance and complies with IEEE 1789 flicker-free standards for eye-protective lighting. Equipped with automatic protection recovery function and fully certified with CE, CB, TUV, SAA, BIS, RoHS, IEC/EN61347-1 and IEC/EN61347-2-13, this driver comes with a 5-year official factory warranty, ensuring long-term stable operation for indoor dimmable lighting systems.
