● PF test under AC 115V and full loading
● Input voltage: 100-130Vac
● Output voltage: 12V, 24V, 36V, 48V
● Output power range: 0~150W
● Power factor: PF>0.55
● Efficiency: 91%-92%
● Certificates: CE, CB, TUV, SAA, BIS, ROHS
● Features: 5-in-1 dimming, flicker-free (IEEE 1789), 0.1% dimming depth, automatic protection recovery

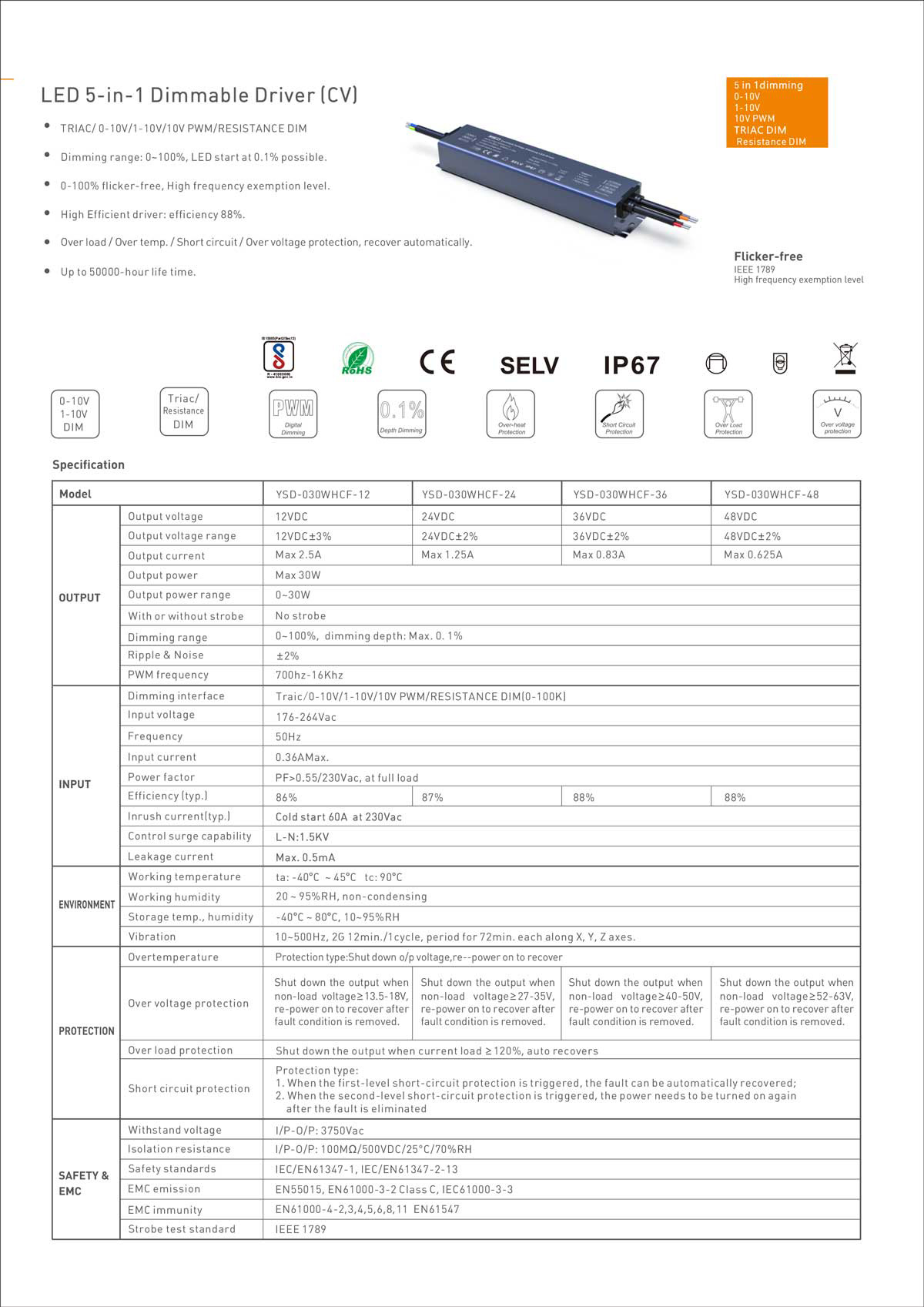

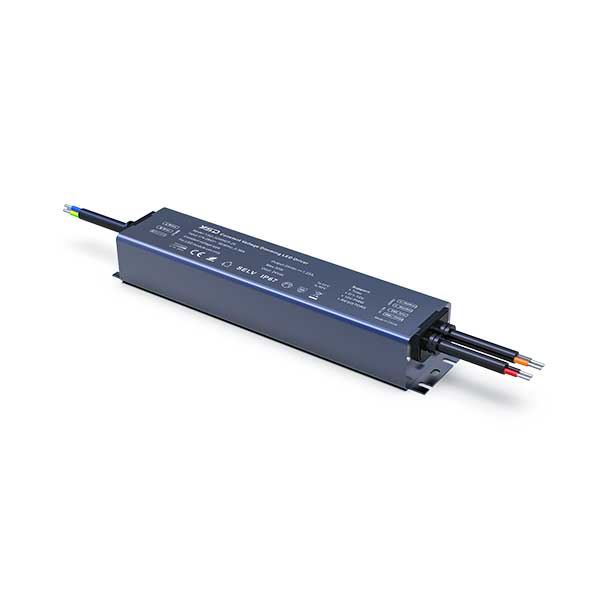

This 30W 230V wide-voltage 5-in-1 multi-signal dimmable constant voltage LED driver is designed for global universal lighting applications. It features a wide input voltage range of 176-264Vac, perfectly adapting to worldwide grid voltage standards. Available with optional 12V, 24V, 36V and 48V DC constant voltage output, it meets diverse low-power LED lighting demands. Tested under AC 230V full load condition, it maintains a stable power factor above 0.55 and reliable working efficiency of 86%-88%. Supporting professional 5-in-1 multi-protocol dimming, it achieves ultra-smooth 0.1% ultra-deep dimming and fully complies with IEEE 1789 flicker-free standards for eye-friendly lighting. Built-in automatic recovery protection ensures safe and stable operation. Fully certified by CE, CB, TUV, SAA, BIS and RoHS, it is ideal for small-power LED strips, cabinet lights and indoor dimmable lighting systems worldwide.
