● PF test under AC 230V and full loading
● Input voltage: 176-264Vac
● Output voltage: 12V, 24V, 36V, 48V
● Output power range: 0~300W
● Power factor: PF>0.55
● Efficiency: 92%
● Certificates：CE, CB, TUV, SAA, BIS, ROHS, IEC/EN61347-1, IEC/EN61347-2-13
● Warranty period：5 years

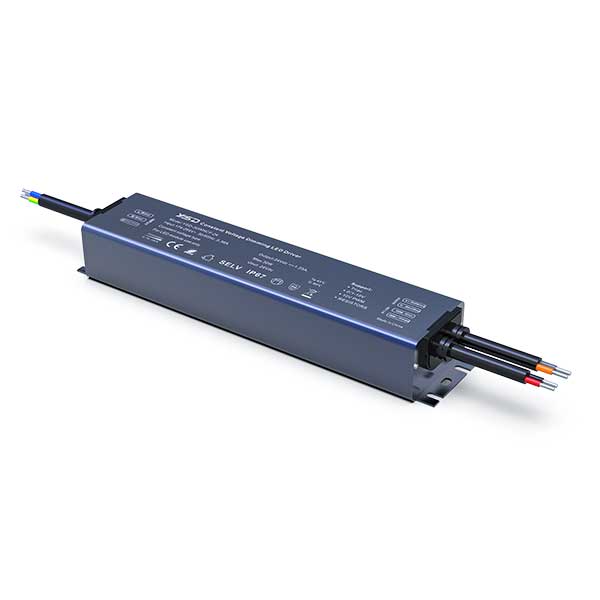

This 300W 230V wide-voltage 5-in-1 multi-signal dimmable constant voltage LED driver is a top-tier high-power energy-saving power solution for global large-scale commercial smart lighting systems. It adopts an ultra-wide universal AC input range of 176-264Vac, fully compatible with global mainstream grid voltage standards, supporting worldwide commercial installation and engineering applications. It offers flexible optional DC constant voltage outputs of 12V, 24V, 36V and 48V to match various high-power LED strips, oversized light boxes, shopping malls, supermarkets and large-area commercial lighting equipment. Tested under AC 230V full load condition, the driver maintains a stable power factor above 0.55 and achieves reliable high working efficiency of 92%, effectively reducing long-term operating energy costs. Equipped with professional 5-in-1 multi-protocol dimming technology, it delivers ultra-smooth 0.1% ultra-deep dimming performance and strictly complies with IEEE 1789 flicker-free standards, providing stable, uniform and eye-protective lighting output. Featuring automatic protection recovery design and fully certified by CE, CB, TUV, SAA, BIS, RoHS, IEC/EN61347-1 and IEC/EN61347-2-13, this high-power driver is backed by a 5-year official factory warranty, ensuring long-term stable and safe operation for high-end commercial lighting projects.
