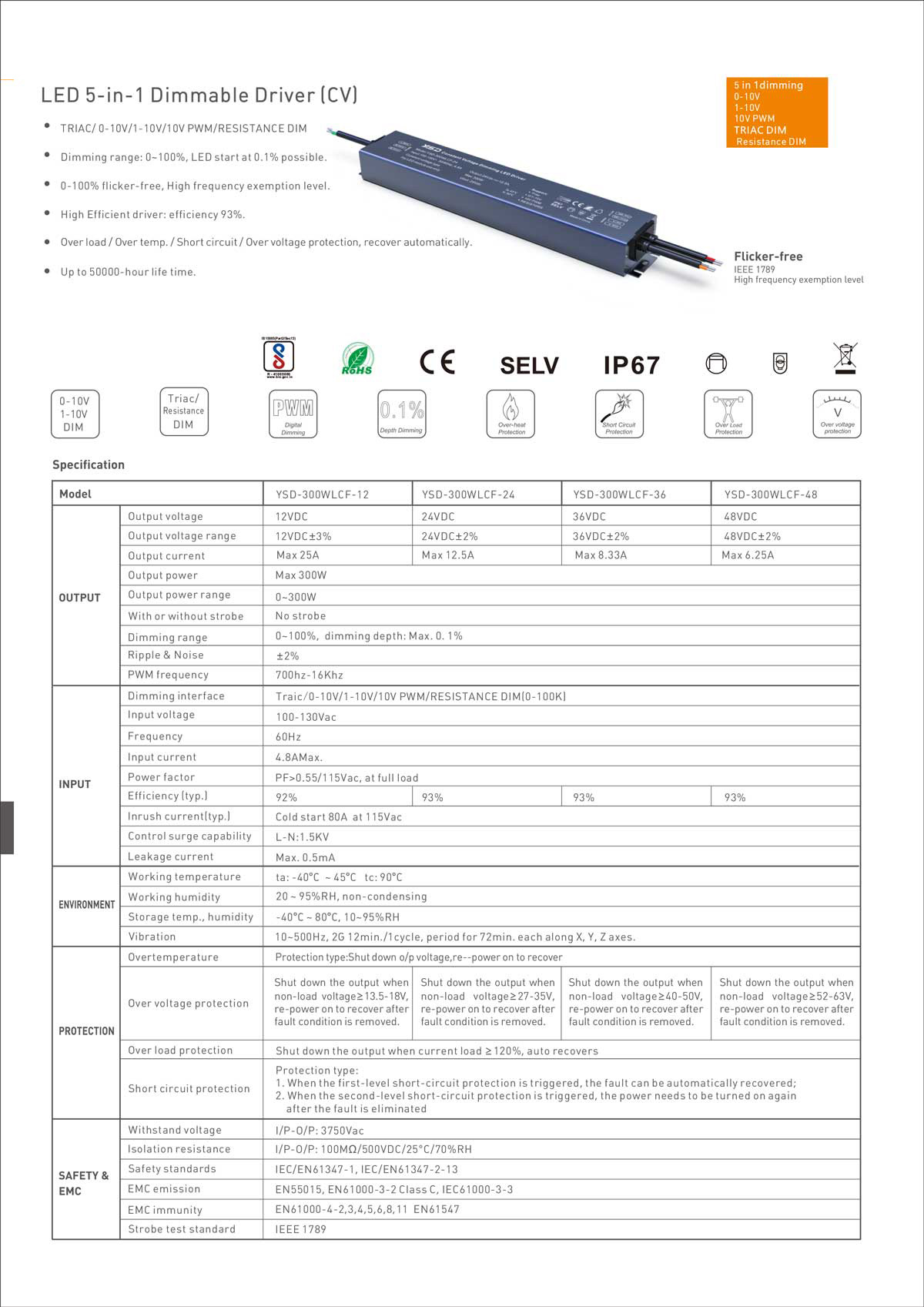

● PF test under AC 115V and full loading
● Input voltage: 100-130Vac
● Output voltage: 12V, 24V, 36V, 48V
● Output power range: 0~300W
● Power factor: PF>0.55
● Efficiency: 92%-93%
● Certificates: CE, CB, TUV, SAA, BIS, ROHS
● Warranty period: (To be confirmed with supplier)

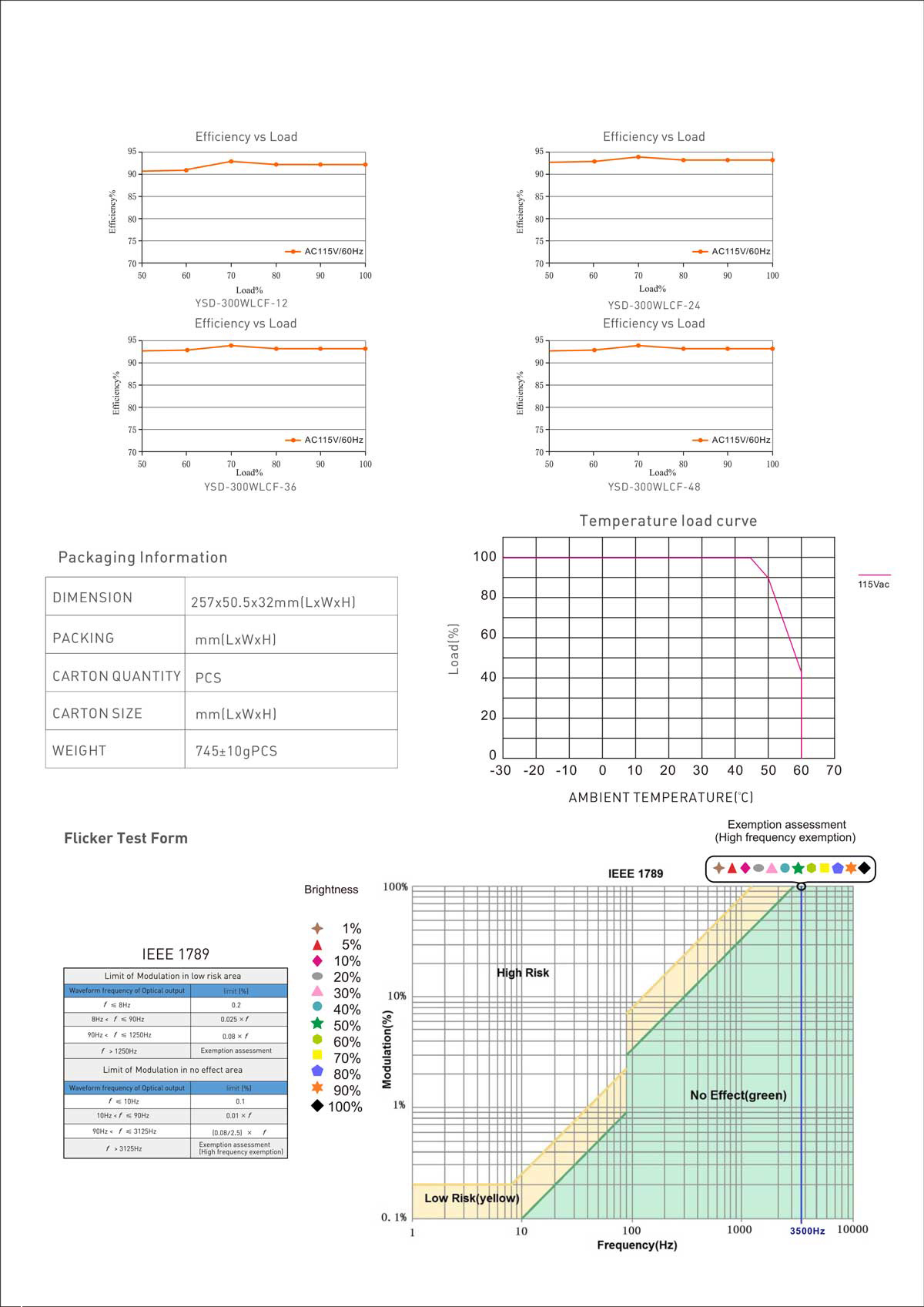

● Features: 5-in-1 dimming, flicker-free (IEEE 1789), 0.1% dimming depth, automatic protection recovery

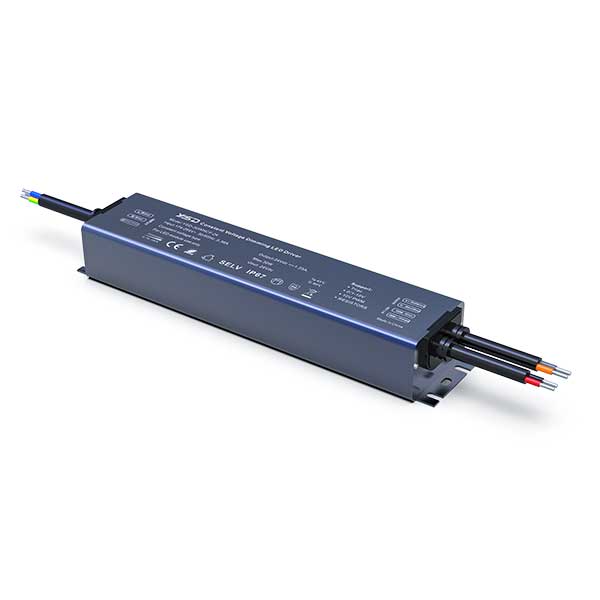

This 300W 5-in-1 multi-signal dimmable constant voltage LED driver is a premium high-power energy-saving solution for large commercial smart dimmable lighting systems. It supports 100-130Vac universal input voltage and flexible optional DC output of 12V, 24V, 36V and 48V. Tested under AC 115V full load condition, it maintains a stable power factor above 0.55 and achieves industry-leading ultra-high efficiency of 92%-93%, effectively reducing long-term energy consumption. Adopting advanced 5-in-1 multi-protocol dimming technology, it delivers ultra-smooth 0.1% ultra-deep dimming performance and fully complies with IEEE 1789 flicker-free standards, ensuring stable, glare-free and eye-friendly lighting output. Built-in automatic recovery protection circuits provide comprehensive defense against overload, overvoltage, overheating and short circuits. Fully certified by CE, CB, TUV, SAA, BIS and RoHS, it is perfectly suited for high-power LED strip systems, large light boxes, supermarket, mall and large-scale commercial intelligent dimmable lighting projects.
