● PF test under AC 115V and full loading
● Input voltage: 100-130Vac
● Output voltage: 12V, 24V, 36V, 48V
● Output power range: 0~30W
● Power factor: PF>0.55
● Efficiency: 85%-87%
● Certificates: CE, CB, TUV, SAA, BIS, ROHS
● Warranty period: (To be confirmed with supplier)
● Features: 5-in-1 dimming, flicker-free (IEEE 1789), 0.1% dimming depth, automatic protection recovery

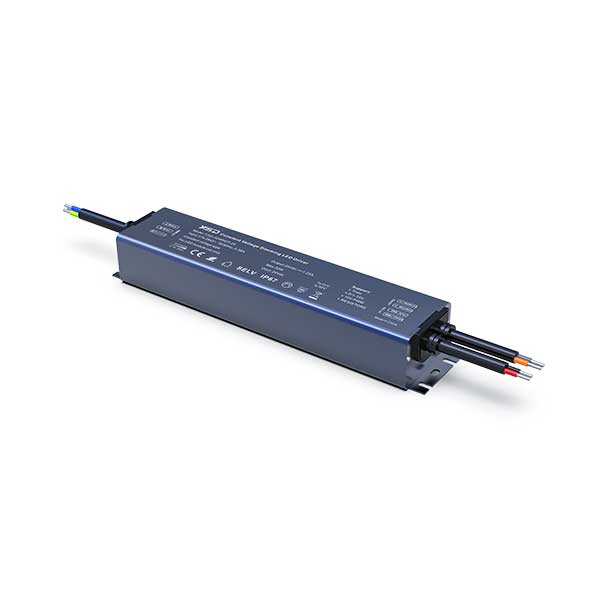

This 30W 5-in-1 dimmable constant voltage LED driver features 100-130Vac wide input voltage and optional 12V, 24V, 36V, 48V DC output. Tested at AC 115V full load, it achieves PF>0.55 and 85%-87% working efficiency. Supporting 5-in-1 multi-protocol dimming, it realizes ultra-smooth 0.1% deep dimming with flicker-free performance that meets IEEE 1789 standard. Built-in automatic recovery protection circuits, this driver has obtained CE, CB, TUV, SAA, BIS and RoHS certifications, widely suitable for LED strips, light boxes and small commercial dimmable lighting systems.
